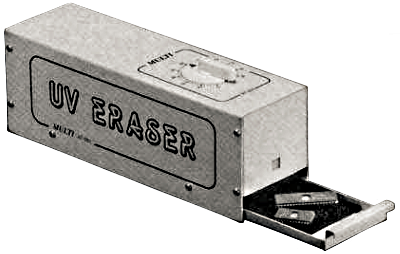

UV EPROM Eraser |
|
AT-201
| Feature: |
- High capacity - erase up to
38 devices.
- Timer control - Digital
timer with LED display (AT-401), Mechanical(AT-201)
- Automatically switch off
when time is up or the drawer is opened.
|
| Capacities: |
| Model |
AT-201 |
AT-401 |
| DIP24 |
24 pcs |
38 pcs |
| DIP28 |
20 pcs |
34 pcs |
| DIP40 |
16 pcs |
24 pcs |
| Erase Area |
190 x
75 mm |
310 x
75mm |
|
| Technical
Specification: |
| Model |
AT-201 |
AT-401 |
| UV Tube |
8 inches, 6W |
12 inches, 10W |
| UV Wavelength |
253.7nm |
| UV Intensity |
8mW /
cm² |
| Timer Range |
1 ~ 60 minutes |
5 ~ 60 minutes
(5 minutes resolution) |
| Erase Area |
190 x 75 mm |
310 x 75 mm |
| Timer Type |
Mechanical |
Digital |
| Power Source |
220VAC, 50/60Hz (Specified when order) |
| Dimension(mm) |
275(L) x 82(W) x
100(H) |
390(L) x 80(W) x
120(H) |
| Weight |
1.5kg |
2.2kg |
|
| |
Document Description |
Document Reference |
|
 |
AT-201
Specifications |
