Canon EF 24-105mm f/4.0 L IS USM

Features

  • L-series optics
  • Lightweight 4.3x zoom
  • Constant maximum f/4 aperture throughout zoom range
  • Three-stop Image Stabilizer
  • Super UD and aspheric lens elements
  • Fast autofocus
  • Super Spectra coatings
  • Circular aperture provides pleasing background blur

Description

This easy-to-use standard zoom lens can cover a large zoom area ranging from 24mm wide-angle to 105mm portrait-length telephoto, and its Image Stabilizer Technology steadies camera shake up to three stops. Constructed with one Super-UD glass element and three aspherical lenses, this lens minimizes chromatic aberration and distortion. The result is excellent picture quality, even at wide apertures. Canon's ring-type USM gives silent but quick AF, along with full-time manual focus. Moreover, with dust- and moisture-resistant construction, this is a durable yet sophisticated lens that meets the demands of advanced amateur photographers and professional photographers alike.

The lens at minimum and maximum extension

The lens hood fitted

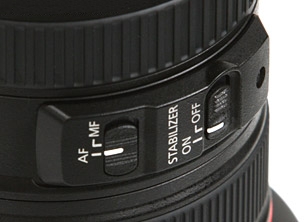

Close up of the switches

Auto/Manual Focus

Image Stabiliser On/Off





Specifications

Focal Length & Maximum Aperture 24-105mm f/4
Lens Construction 18 elements in 13 groups
Diagonal Angle of View 84° - 23° 20' (with full-frame camera)
Focus Adjustment Inner focusing system with focusing cam
Closest Focusing Distance 1.48 ft./0.45m
Zoom System 5-group helical zoom (front group moves: 32.5mm)
Filter Size 77mm
Max. Diameter x Length, Weight 3.3 in. x 4.2 in., 23.6 oz. / 83.5mm x 107mm, 670g (lens only)

Documentation



  Document Title Source

EF24-105mm F4L IS USM Instruction Manual   ef24-105f4lisusm-en



Comments

This is a great "walk-about" lens, it has the high quality optics found in Canon's L(uxury) range lenses, lightweight construction and a wide focal range. If I only had one lens for my camera - this would be it.





Some images downloaded from the-digital-picture.com, documentation downloaded from Canon USA
